D80 Fiber Optic Cable with 200-800μm Core Diameters for High Power Laser and 90% Transmission Efficiency

1
MOQ
$238.98-262.72
preço
D80 Fiber Optic Cable with 200-800μm Core Diameters for High Power Laser and 90% Transmission Efficiency
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Diâmetro do núcleo de fibra: 200μm, 300μm, 400μm, 600μm, 800μm
Material do núcleo de fibra: Sílica fundida de alta pureza (Low-OH)
Tipo de fibra: Fibra de índice escalonado como padrão; Fibra de índice graduado mediante solicitação
Abertura numérica: 0,22 como padrão, outros sob consulta
Comprimento de onda operacional: 400-2400 nm
Diâmetro do tubo de proteção: 8 mm
Comprimentos dos cabos: 3m, 5m, 10m, 20m (personalizável)
Eficiência da transmissão: > 90%
Capacidade de potência do laser: Até centenas de watts
Material de poça: Ligas de cobre, aço inoxidável, zircônia
Tamanho da bota: 3,0 mm, 2,2 mm
Opções de tamanho de fibra: 105um-1500um
Faixa de comprimento de onda: 190nm-2500nm
Potência de saída: 400W, 600W, 800W, 1000W
Tamanho do pacote: 25X20X1cm
Destacar:

200-800μm Core Diameters Fiber Optic Cable

,

90% Transmission Efficiency Laser Transmission Cable

,

High Power Laser D80 Fiber Cable

Informação básica
Lugar de origem: Guangdong, China
Marca: Hicorpwell
Número do modelo: D80
Condições de Pagamento e Envio
Descrição de produto
3M 5M 755nm 1064nm D80-SK Sapphire Fiber Laser Portable Beauty Optic Cable Laser Machine

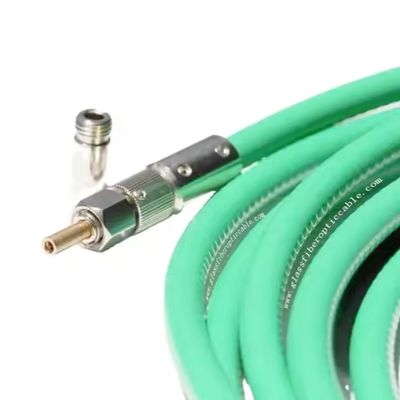

D80 Fiber Optic Cable with 200-800μm Core Diameters for High Power Laser and 90% Transmission Efficiency 0

D80 fiber cables for high-power laser delivery are available in different fiber-core diameters from 200 microns to 800 microns (200μm, 300μm, 400μm, 600μm, 800μm). Heat dissipation plays a crucial role in the coupling of high-power.

Hicorpwell D80 fiber cables use step-index double-clad fibers and ferrules of good heat-conducting copper alloys for laser transmission. For enhanced protection, the D80 fiber connectors incorporate sapphire and air gap technology, enabling the cables to sustain laser power up to hundreds of watts with more than 90% transmission efficiency depending on fiber core diameters and laser specifications.

Ideal for fiber-coupled laser systems in wavelength ranges from visible to near infrared (VIS-NIR, typically 400-2400 nm), including high-power semiconductor lasers, solid-state lasers, and fiber lasers. Applications include high power laser transmission, laser welding, laser cutting, and other industrial laser processes.

Key Features
Sapphire and Air Gap Protection
Precisely Polished D80 Fiber Connectors
Step-index Fiber Optimized for VIS-NIR
0.22NA as Standard; Others on Request
Applications
High-power and Flexible Laser Transmission
Laser Welding
Laser Cutting
Other Fiber-coupled Laser Systems

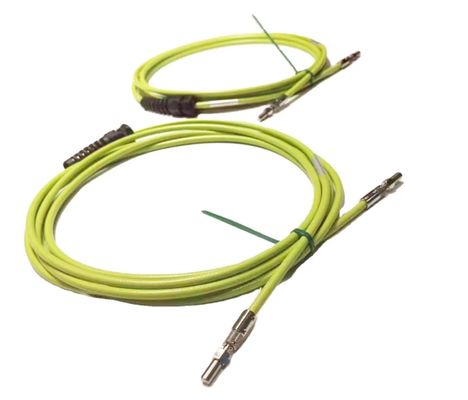

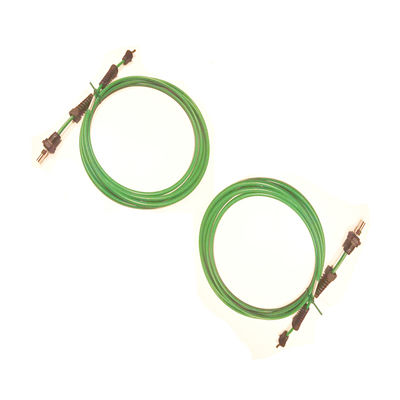

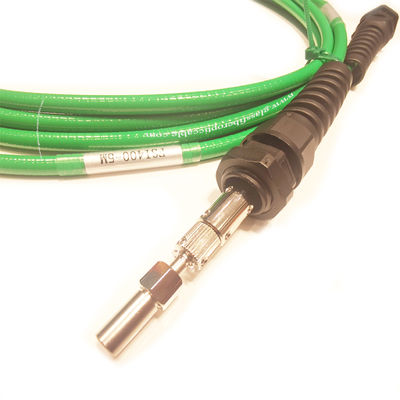

D80 Fiber Optic Cable with 200-800μm Core Diameters for High Power Laser and 90% Transmission Efficiency 1 D80 Fiber Optic Cable with 200-800μm Core Diameters for High Power Laser and 90% Transmission Efficiency 2 D80 Fiber Optic Cable with 200-800μm Core Diameters for High Power Laser and 90% Transmission Efficiency 3
Technical Specifications
Parameter Specification
Fiber Core Diameter (μm) 200, 300, 400, 600, 800
Fiber Core Material High purity fused silica (Low-OH)
Fiber Type Step-index fiber as standard; Graded-index fiber on request
Numerical Aperture (NA) 0.22 as standard, others on request
Operating Wavelength (nm) 400-2400
Protection Tube Diameter (mm) 8
Cable Lengths (m) 3, 5, 10, 20, etc. (customizable)
Additional Features
Good fatigue resistance
Connector diversification options, special custom
Large core optical fiber, a variety of optional specifications
Fiber 105um-1500um optional 190nm-2500nm wavelength range

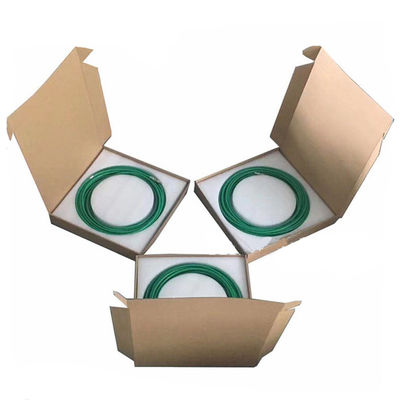

D80 Fiber Optic Cable with 200-800μm Core Diameters for High Power Laser and 90% Transmission Efficiency 4 D80 Fiber Optic Cable with 200-800μm Core Diameters for High Power Laser and 90% Transmission Efficiency 5
Standard Models

SI200E, SI300E, SI400E, SI600F, SI800F, GI400E, GI600E

Output power can reach 400W, 600W, 800W, 1000W

Optical fiber standard length: customized by customer

D80 Fiber Optic Cable with 200-800μm Core Diameters for High Power Laser and 90% Transmission Efficiency 6 D80 Fiber Optic Cable with 200-800μm Core Diameters for High Power Laser and 90% Transmission Efficiency 7
Frequently Asked Questions
Q: Are you a trading company or manufacturer?
A: We are factory verified by TUV.
Q: What is your delivery time?
A: Generally, sample: 3~5 working days. Formal order: 7-10 working days.
Q: Do you provide OEM service?
A: Yes, we can print your logo or label on the products or on the box.
