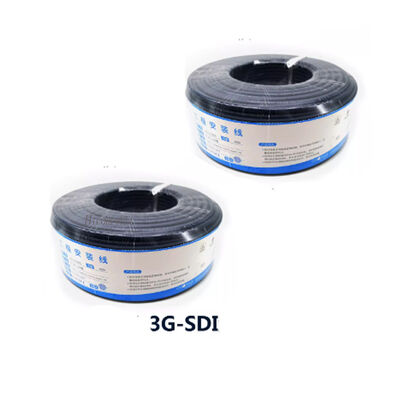

Tipo de cabo:12G 3G Hd SDI 50 cabo coaxial de 75 ohms
Cor de pintura:Preto
Propósito de cabo:Aplicações de vídeo ao ar livre
Comprimento:15m/30m/50m/100m/150m/300m
Aplicativo:Comunicação ao ar livre
Funções:Aplicativos de vídeo
Destacar:
300m SDI fiber camera cable
,
SDI test kit with cables
,
50m network access SDI cable
Informação básica
Lugar de origem:China
Marca:HICORPWELL
Certificação:IEC 60794-2-10/11
Número do modelo:RG6 coaxial
Condições de Pagamento e Envio
Detalhes da embalagem:Detalhes da embalagem de 2-4 km/carretéis: tambor de madeira ou conforme a solicitação do cliente De
Termos de pagamento:Western Union,L/C,T/T
Habilidade da fonte:3000 km por semana
Galeria

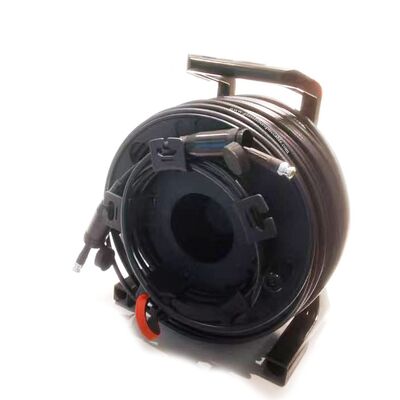

Sdi Cable 300m Fiber Sdi Camera Cables Sdi test Kit Camera SDI Cable 50m 100m 200m Network Access
Descrição de produto
SDI Cable 300m Fiber SDI Camera Cables SDI Test Kit Camera SDI Cable 50m 100m 200m Network Access

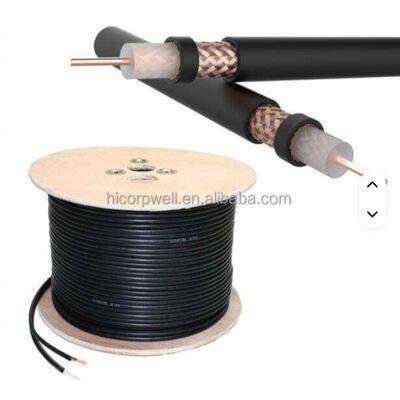

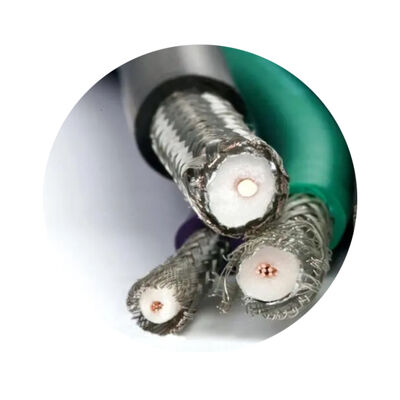

Coaxial cable conducts electrical signal using an inner conductor (usually a solid copper, stranded copper or copper plated steel wire) surrounded by an insulating layer and all enclosed by a shield, typically one to four layers of woven metallic braid and metallic tape.
Complies with SMPTE standards, supports 3G, 6G and 12G SDI signal transmission, can be used for HD, 3D, 4K and 8K ultra high definition video transmission.

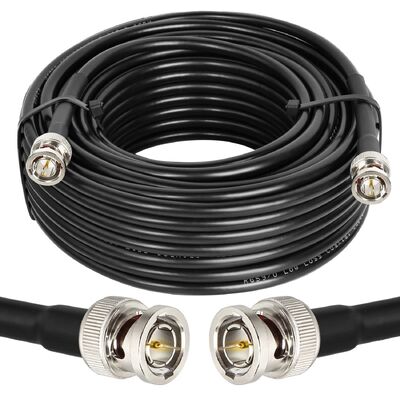

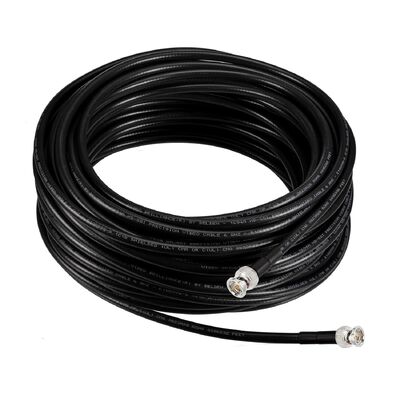

75ohm coaxial cable structure, with BNC connectors at both ends, convenient for connecting with various SDI devices.
Low loss, low attenuation characteristics ensure signal quality is not affected during long-distance transmission.
Rugged outer design, with certain tensile, torsional and compression resistance, suitable for use in field work environments.
Cable lengths generally come in 3m, 5m, 10m and other specifications, convenient to choose the appropriate length as needed.
Commonly used to connect high-definition cameras, switchers, monitors, SDI converters and other SDI video equipment, widely used in television broadcasting, video production, multimedia presentations and other professional fields.
The cable is protected by an outer insulating jacket. Normally, the outside of the shield is kept at ground potential and a signal carrying voltage is applied to the center conductor. The advantage of coaxial design is that with differential mode, equal push-pull currents on the inner conductor, and inside of the outer conductor, the signal's electric and magnetic fields are restricted to the dielectric, with little leakage outside the shield.
Common Applications
Common applications of coaxial cable include video and CATV distribution, RF and microwave transmission, and computer and instrumentation data connections.
